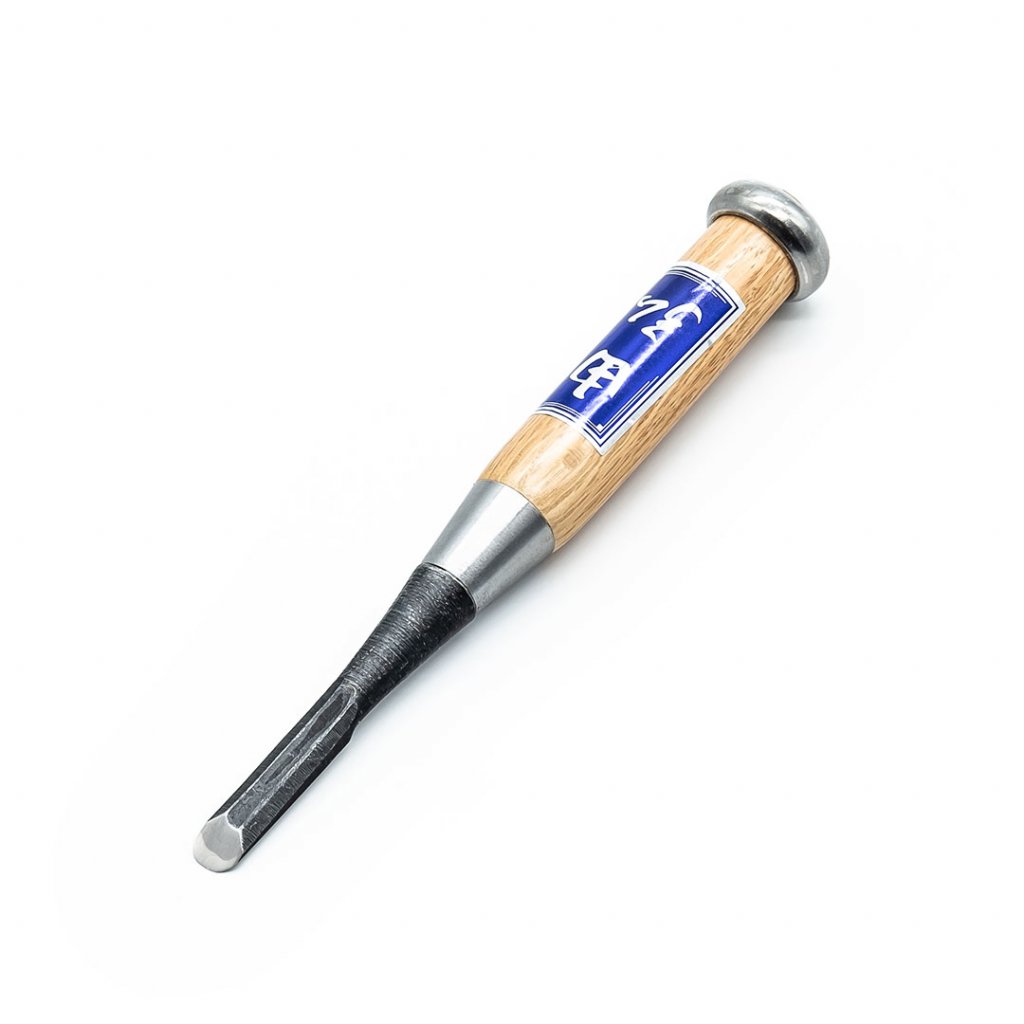

Japanese Carving Chisel YOSHIHIRO Tataki Sotomaru - 9 mm

Code: 6198
New
Not rated
Brand: YOSHIHIRO
€31,91 €38,61 incl. VAT
In Stock
Delivery to:
29.5.2024

Traditional Japanese round chisel with groove, type Tataki Nomi 叩き鑿 – striking chisel, shape Sotomaru Nomi 外丸鑿 – round, convex shape, from the brand YOSHIHIRO. Laminated two-layer blade with high durability and sharpness. Body created by blacksmith welding method. Suitable for general carving use. Blade width 9 mm. Made in Japan.

Detailed information

Product detailed description

 yoshihiro_logo_200x33px_regals_cz_www.regals.cz_

YOSHIHIRO – manufacturer of traditional Japanese tools and instruments used for precise craftsmanship. Produces both traditional and modernized carpentry tools.

Sotomaru Nomi 外丸鑿 the shape of a chisel used for shaping internal curves. It is made in various radii and widths. A traditional motif in Japanese woodworking is the precise processing of a board to fit tightly around a column or a natural element, such as a rock or tree trunk. Another use is for embedding lock cases and door hinges. This chisel fits perfectly for this purpose.

The blades of traditional Japanese chisels Nomi 鑿 – are made by joining two layers of steel. The body of the chisel is intentionally made of soft steel, which absorbs the impact when struck by a wooden mallet or a metal hammer, thereby reducing the chance of damaging the tool. However, the edge is created from extremely hard carbon steel, which during production becomes a layer with a hardness of 62 HRC for classic Nomi chisels, up to a hardness of 67 HRC for Japanese chisels with HSS blades, while classic European chisels only reach a hardness of 58 to 60 HRC.

The steel ferrule, a metal ring at the end of the handle of Japanese chisels, needs to be precisely fitted before first use, to prevent splitting of the wooden end of the handle under the blows of the mallet.

made_in_japan_en

Features of the YOSHIHIRO chisel

✅ Traditional carving chisel
✅ Sotomaru Nomi 外丸鑿 shape
✅ For general carving use
✅ Handmade
✅ Blade made of white carbon steel
✅ White paper steel
✅ O profile blade
✅ Handle made of red oak
✅ Made in Japan

There are two main types of Japanese chisels.

It is important to choose the right chisel, as there is a correct chisel for every task. Now, let us look at the two most basic types of Japanese chisels Nomi. Want to know more?

zakladni_typy_japonskych_dlat_001

How to properly fit the steel ferrule?

The steel ferrule of Japanese chisels Nomi needs to be precisely fitted before first use, to prevent splitting of the wooden end of the handle under the blows of the mallet and also to protect your hand against accidental hammering. All you will need are a Japanese setting chisel, a steel hammer, and a solid workbench top or a larger piece of iron. Want to know more?

japonske_dlato_nasazeni_korunky_prstence_kovove_objimky_920x450px_001

Additional parameters

Category: Traditional Carving Chisels
Blade profile: O
Blade width: 9 mm
O ring: Yes
Length: 173 mm
Diameter: 26 mm
Weight: 84 g
Handmade: Yes
Material: Carbon steel
Made in: Japan
Number in package: 1
