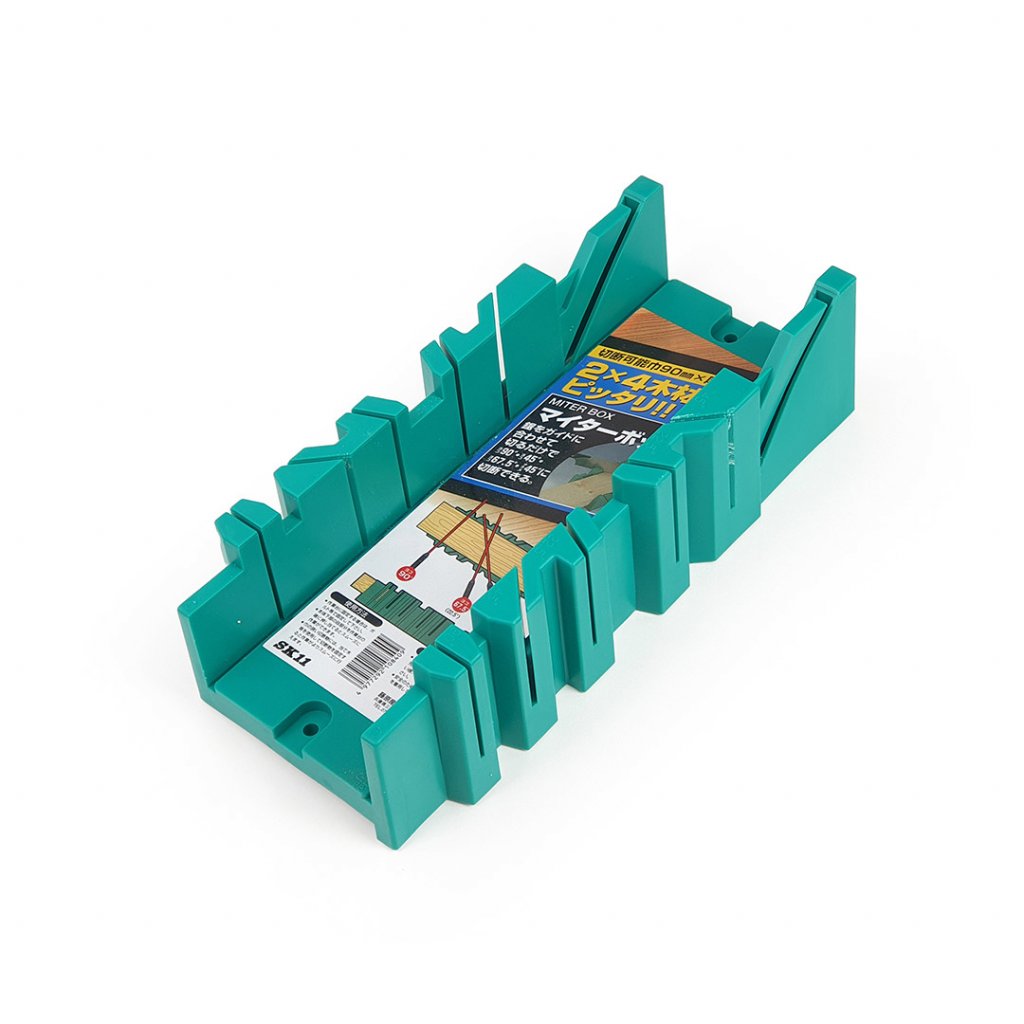

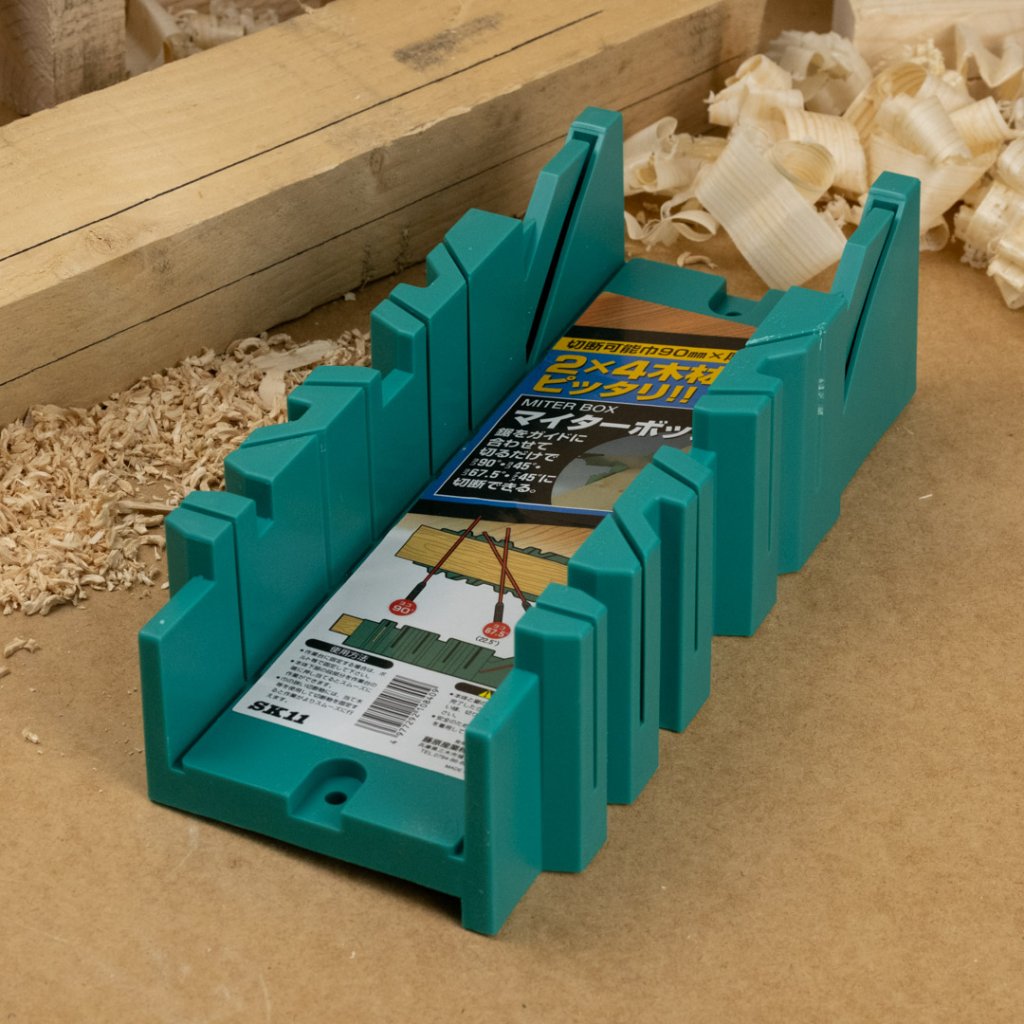

Saw Guide SK11 for 2x4 beams

Code: 4413
Not rated
Brand: SK11
€10,64 €12,87 incl. VAT
In Stock
Delivery to:
28.5.2024

Cross-cutting template for Japanese saws from the brand SK11. Grooved with dimensions 300 x 130 x 80 mm. For cutting rods, logs, pipes, frames, moldings, and other workpieces with a maximum width of 9 cm. Pre-drilled holes for screwing.

Detailed information

Product detailed description

sk11_japan_logo

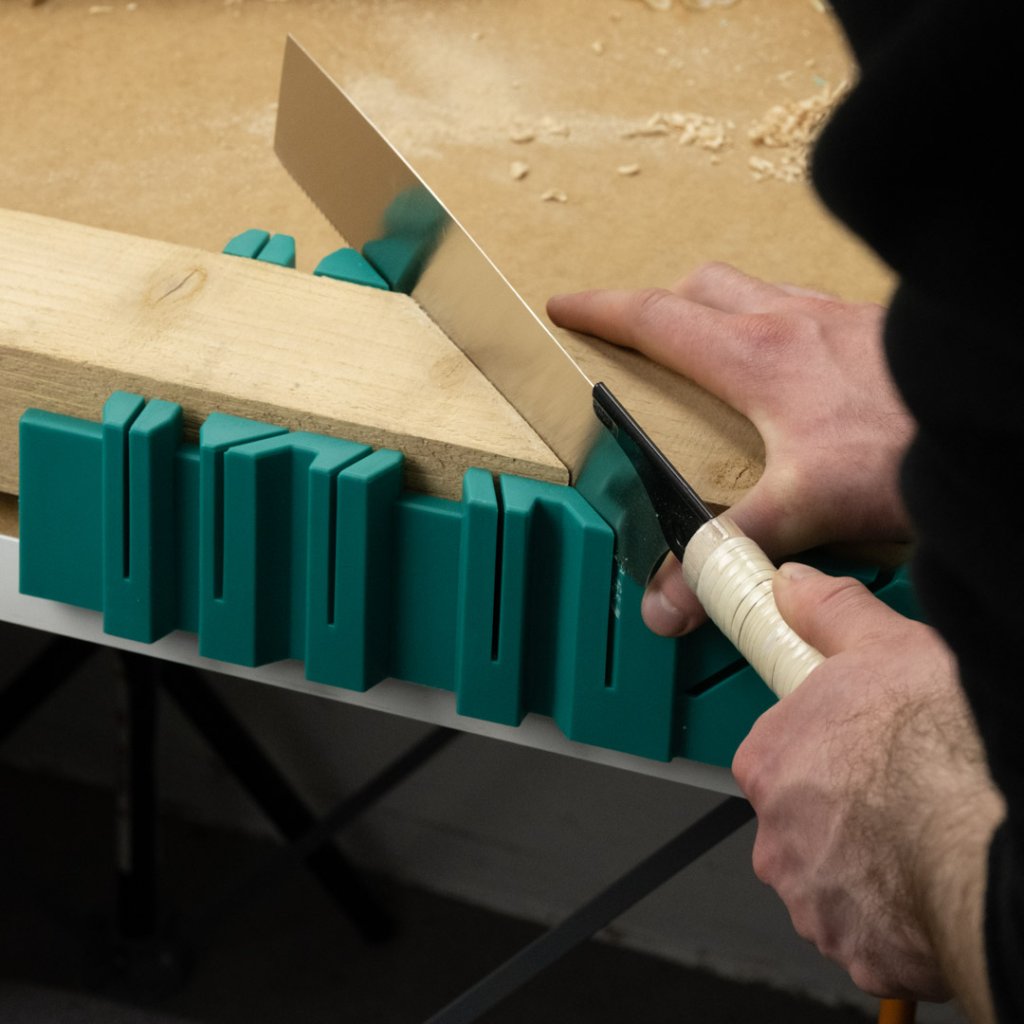

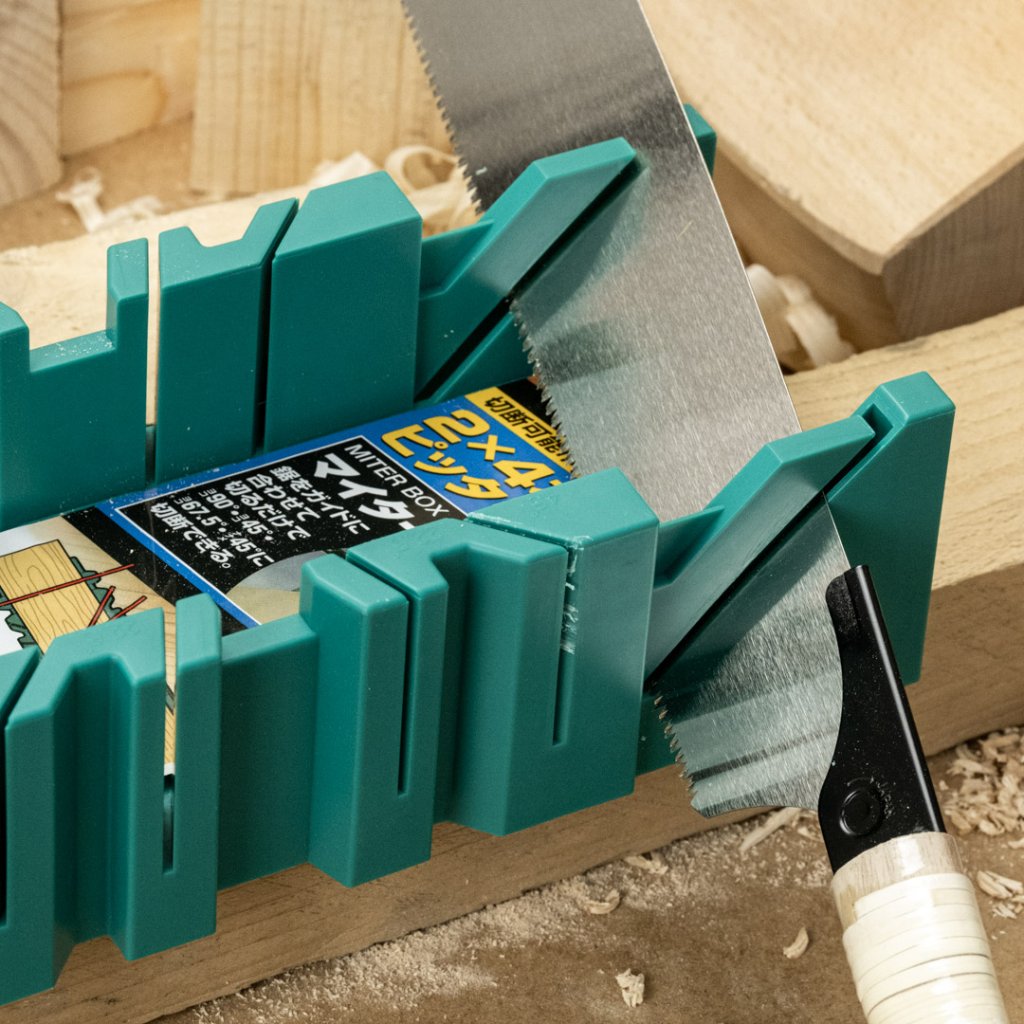

Plastic miter cutting jig for precise angular cuts and corner joint cutting at angles of 45°, 67.5°, and 90°. For cutting rods, logs, pipes, frames, moldings, and other workpieces with a maximum width of 9 cm. Ideal for use with Japanese Nokogiri saws (鋸). It can be screwed onto a base using 3 pre-drilled holes. The miter box is extended at the bottom edge, so the edge stops at the edge of the work surface.

Miter box features:

✅ 6 guide paths
✅ For workpieces with a maximum width of 9 cm
✅ Available angles 45° (both vertically and horizontally), 67.5°, and 90°
✅ Can be screwed onto a base using pre-drilled holes
✅ With a stop to the edge of the work surface





Additional parameters

Category: Saw accessories
Type: Special
For beams: 2x4
Inner track width: 9 cm
Length: 300 mm
Width: 127 mm
Height: 81 mm
Weight: 340 g
Made in: Taiwan
Quantity in package: 1:
