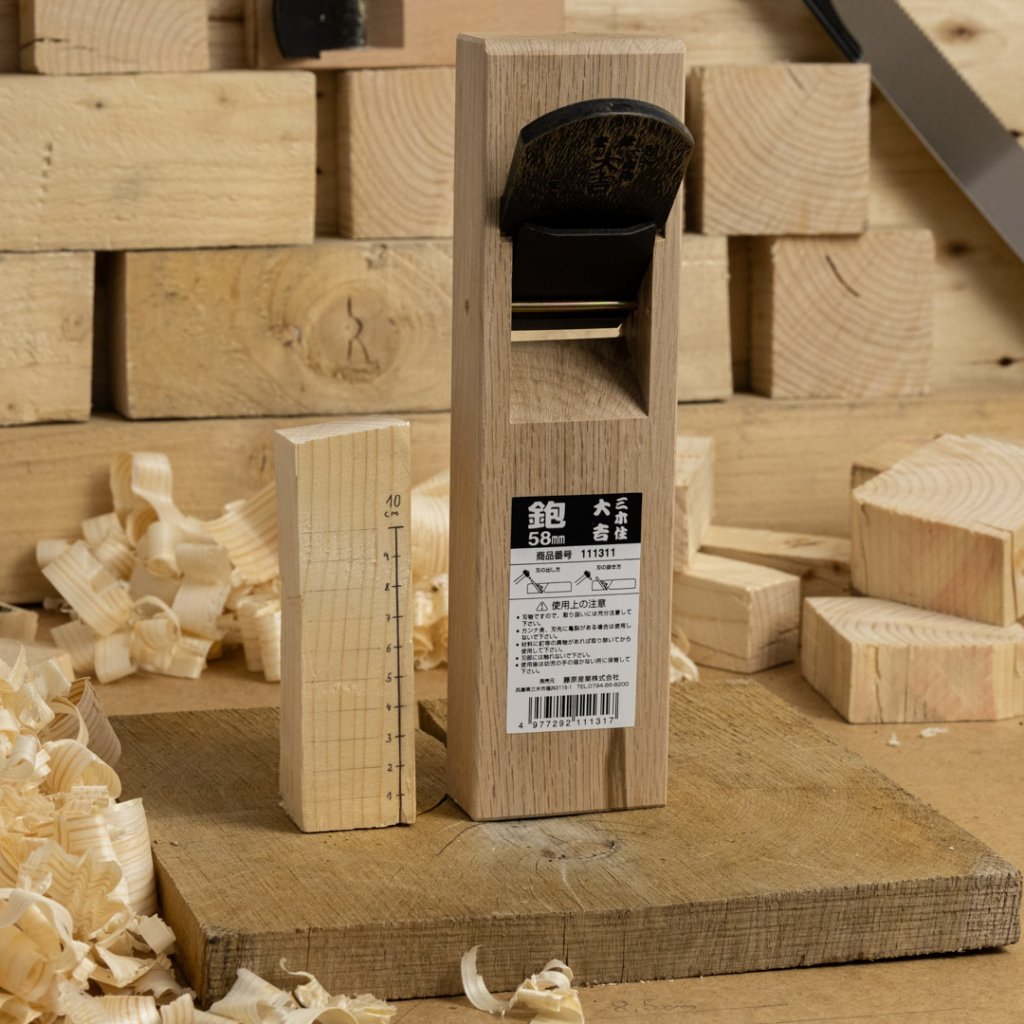

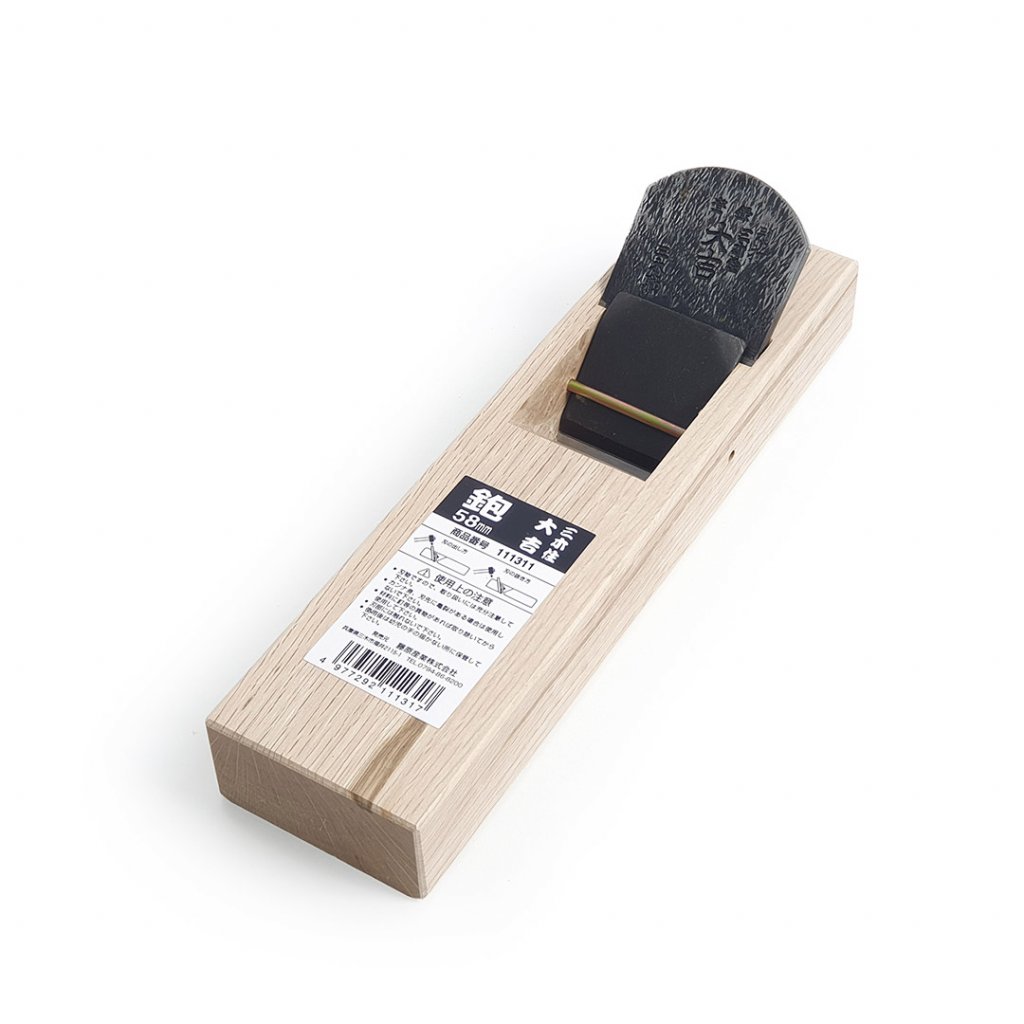

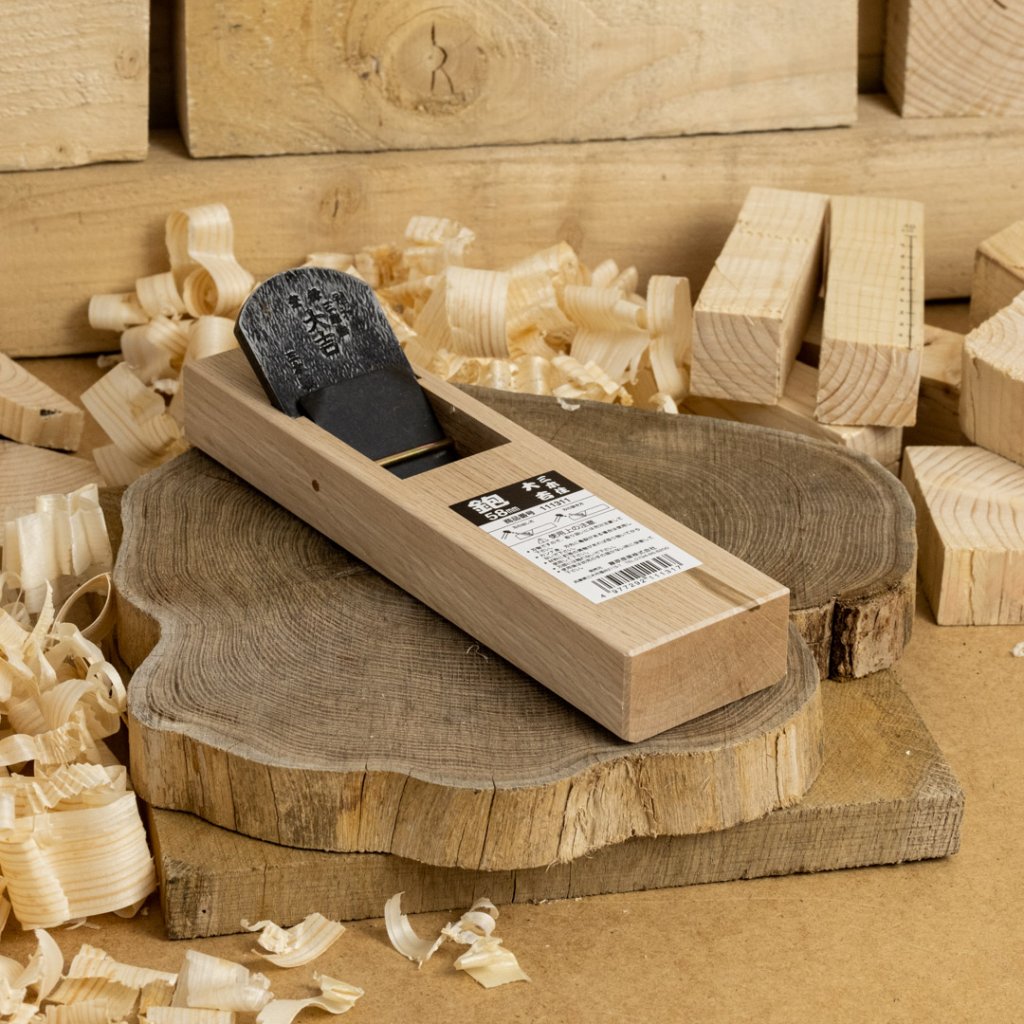

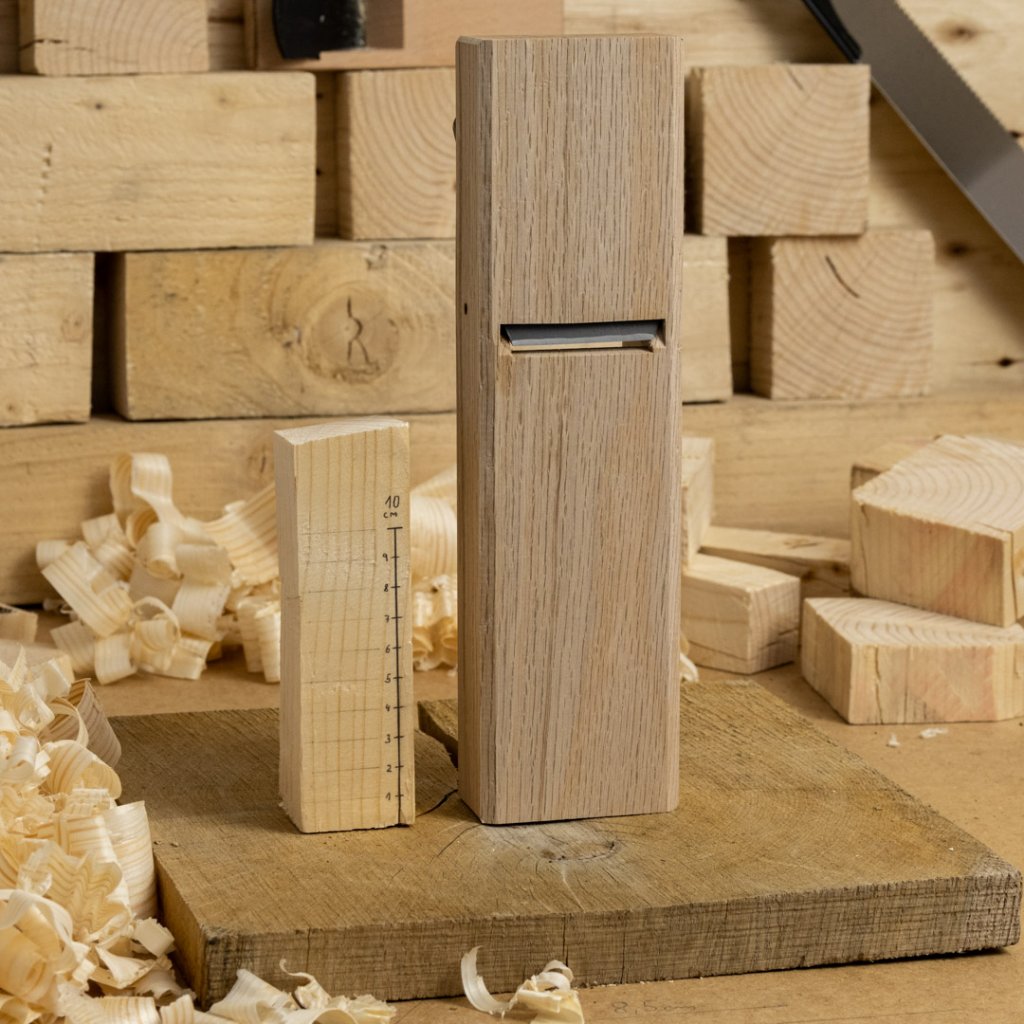

Japanese Wood Plane MIKIJYU - 58 mm

Code: 4548
Not rated
Brand: MIKIJYU
€45,82 €55,44 incl. VAT
In Stock
Delivery to:
29.5.2024

Japanese wood plane from the brand MIKIJYU of the Hira Kanna (鉋) type with a straight blade for regular processing, leveling, and smoothing of wood. Laminated dual-layer blade with high hardness. The chipbreaker facilitates chip breaking and prevents tearing of fibers. Designed for use by pulling towards oneself. Made in Japan.

Detailed information

Product detailed description

mikijyu_logoA high-quality Japanese plane of the Hira Kanna type for common woodworking tasks. Kanna planes have a very simple construction. The blade is made of high-quality Japanese laminated two-layer steel and needs to be fitted into the body of the plane with a hammer tap before first use, which also allows you to adjust the size of the shavings removed from the material. If you want to thin the shaving, simply hit the body of the plane. The thickness of the shaving and the smoothness of the surface are determined by personal adjustment of the iron. Ideally, the blade should protrude 0.05 to 0.2 mm from the body of the plane.

Japanese planes, like Japanese saws, are traditionally used by pulling towards oneself. One hand should guide the plane and the other should gently push the plane towards the material.

made_in_japan_en

Plane Features

✅ Hira Kanna type - for common woodworking tasks
✅ Designed for use by pulling towards oneself
✅ High-quality adjustable Japanese blade
✅ A chip breaker facilitates chip breaking and prevents tearing of fibers
✅ Simple and efficient design
✅ Made of white oak
✅ Made in Japan

How to Use a Japanese Plane

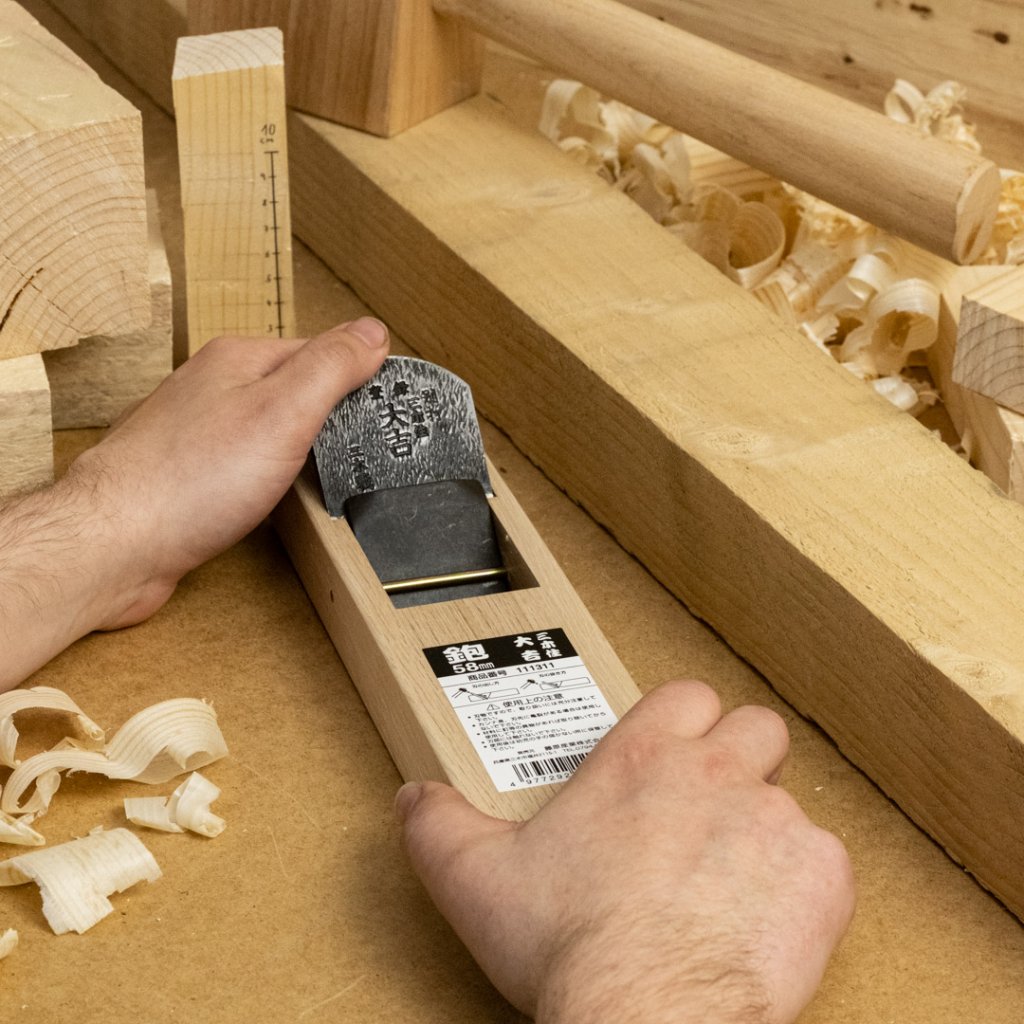

japonsky_hoblik_informaceHold the Kanna with both hands - one hand holds the back part of the plane with the iron, and the other creates an L shape between the forefinger and thumb, holding the part of the plane facing the user. With the movement of your body weight, pull the Kanna towards you in smooth, elongated movements. There is no need to exert excess force, the plane should operate smoothly.

How to Adjust the Blade of a Japanese Plane

japonsky_hoblik_informaceWhen fitting the blade, lightly tap the top part of the iron with a hammer. The blade should protrude approximately 0.05 to 0.2 mm. When removing the blade, lightly hit the top corners of the plane body with a hammer. If the right or left side of the blade protrudes too much, lightly tap on the same side as the protruding blade.

What to Watch Out For

japonsky_hoblik_informaceAlthough a Japanese plane is not a demanding tool, for the proper function of the plane keep in mind that you must plane in the direction of the wood grain and the blade must not protrude too much. Otherwise, the Japanese plane will not function well. The Japanese plane must be adjusted before use according to individual preferences.

Additional parameters

Category: Large
Blade width: 58 mm
Width: 70 mm
Height: 260 mm
Depth: 67 mm
Weight: 800 g
Material: Carbon steel
Made in: Japan
Quantity in package: 1:
