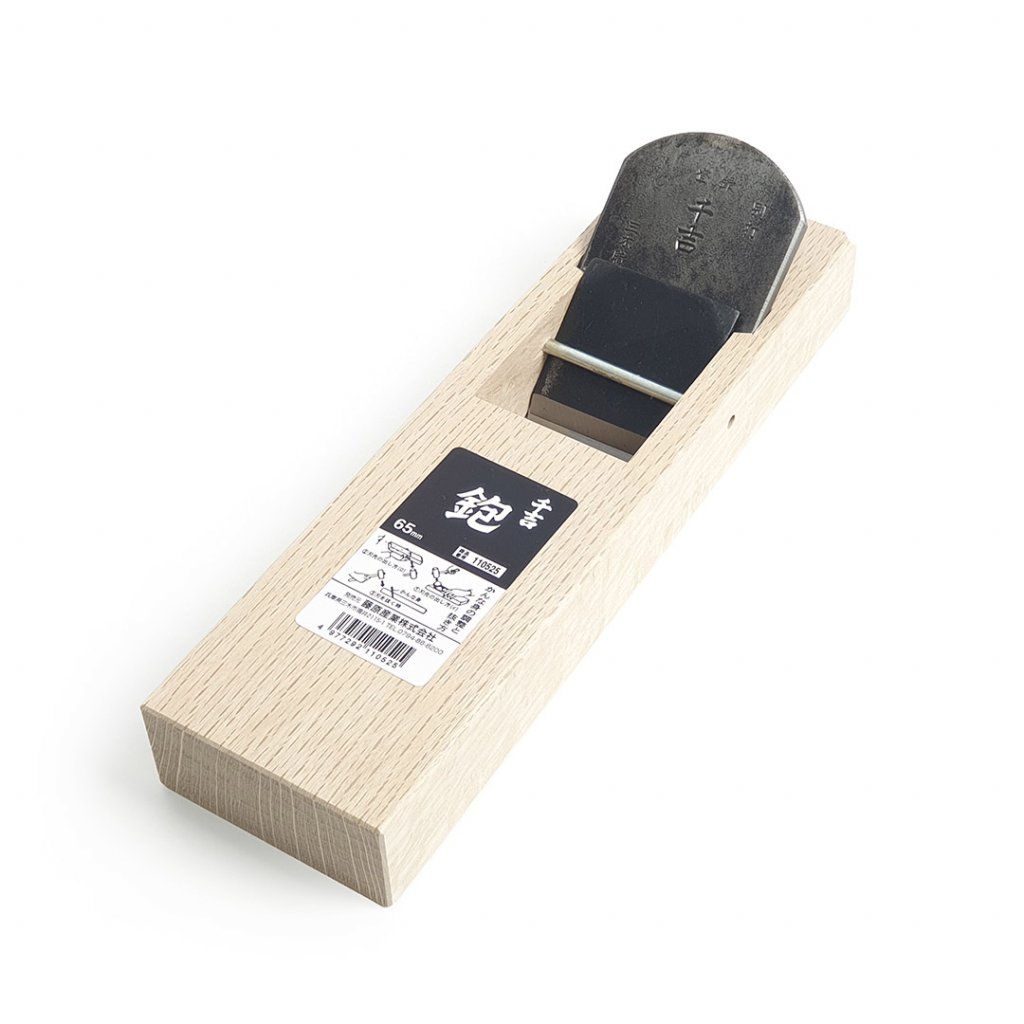

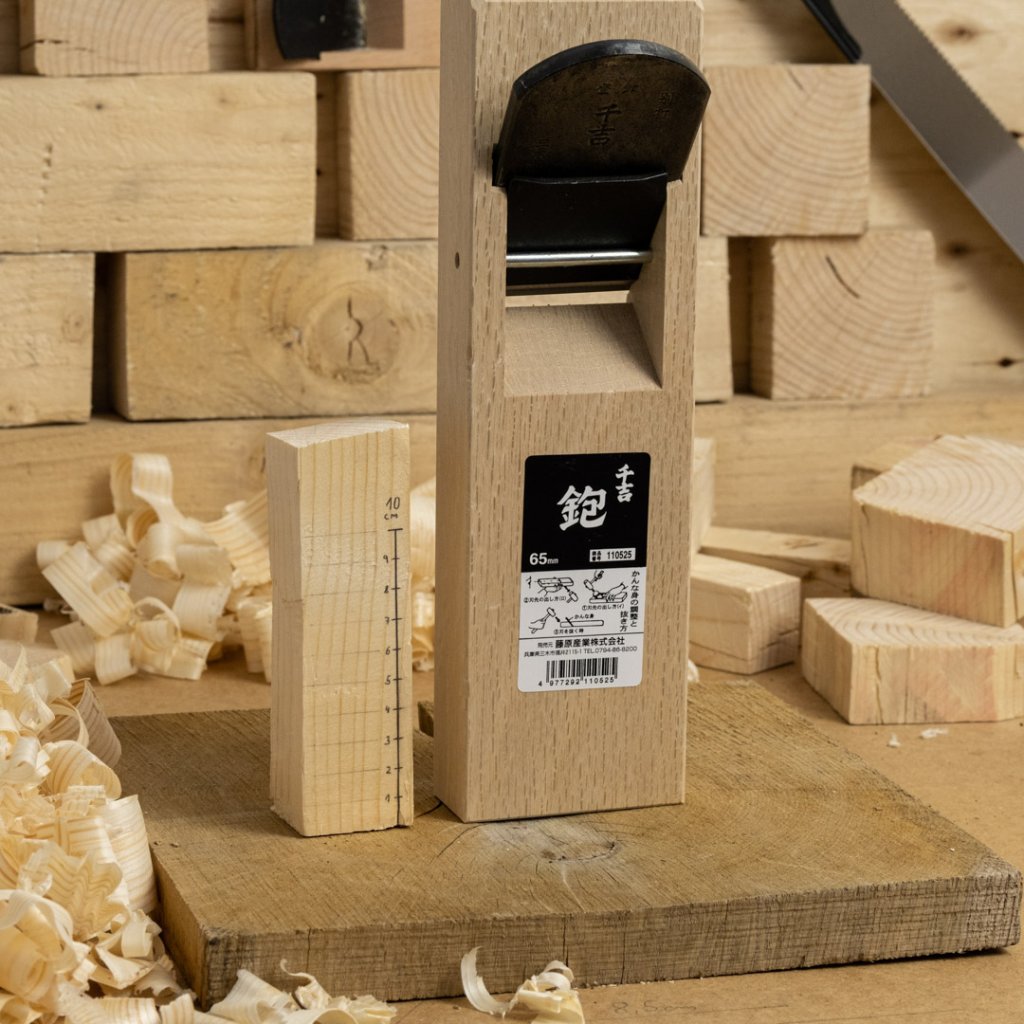

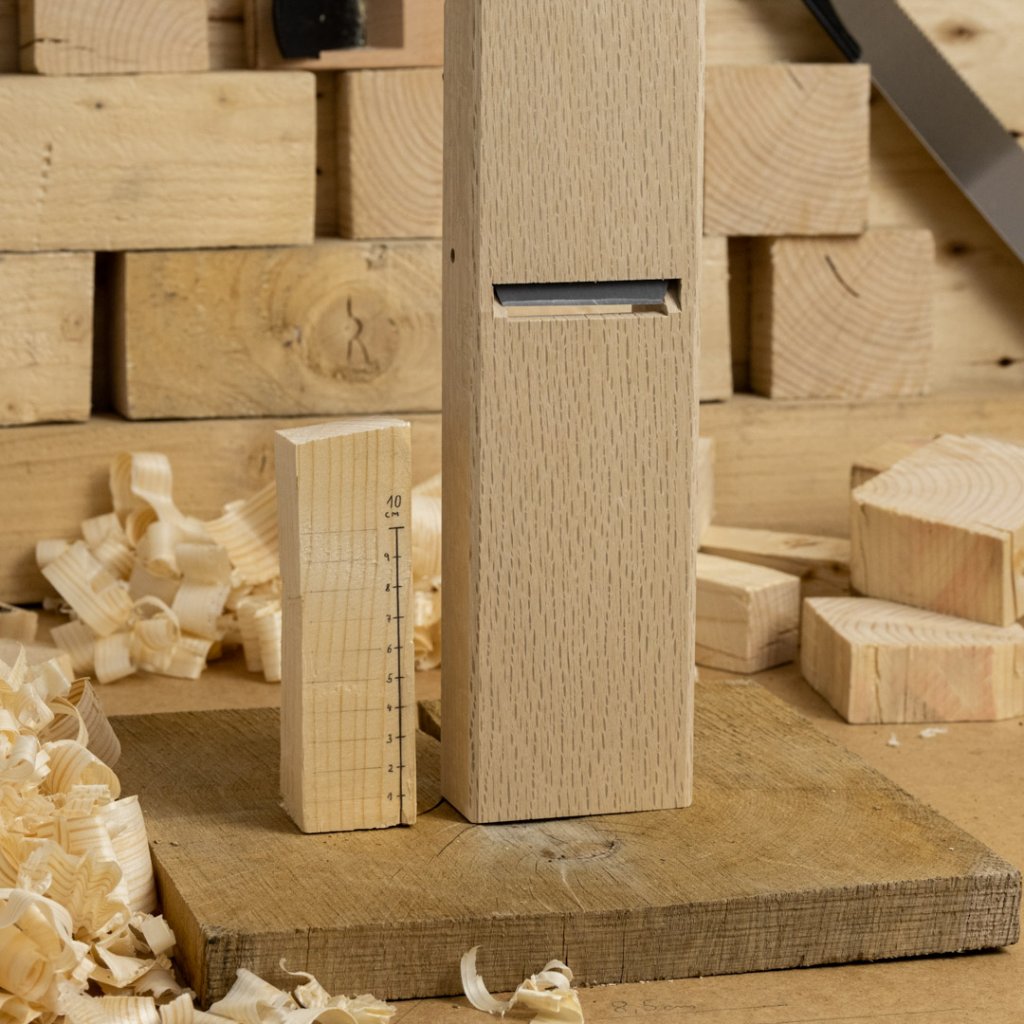

Japanese Wood Plane SENKICHI - 65 mm

Code: 4557
Not rated
Brand: SENKICHI
€63,55 €76,89 incl. VAT
In Stock
Delivery to:
30.5.2024

Japanese wood plane by SENKICHI of the Hira Kanna (鉋) type with a straight blade for regular processing, leveling, and smoothing of wood. Laminated two-layer blade with high hardness. The chipbreaker facilitates chip removal and prevents tearing of fibers. Designed for pull strokes towards oneself. Made in Japan.

Detailed information

Product detailed description

senkichi_logo

A high-quality Japanese Hira Kanna plane for common carpentry work. The Kanna type planes have a very simple design. The blade is made of high-quality Japanese laminated two-layer steel and needs to be fitted into the body of the plane with hammer taps before the first use, which also allows you to adjust the size of the shavings taken from the material. If you want to thin the shaving, simply hit the body of the plane. The thickness of the shaving and the smoothness of the surface depend on the personal adjustment of the iron. Ideally, the blade should protrude 0.05 to 0.2 mm from the body of the plane.

Japanese planes, just like Japanese saws, are traditionally used by pulling towards oneself. One hand should guide the plane and the other gently push the plane towards the material.

made_in_japan_en

Plane Features

✅ Hira Kanna type - for common carpentry work
✅ Intended for use by pulling towards oneself
✅ High-quality adjustable Japanese blade
✅ The chipbreaker facilitates the breaking of shavings and prevents tearing of fibers
✅ Simple and efficient design
✅ Made of white oak
✅ Made in Japan

How to Use a Japanese Plane

japonsky_hoblik_informaceHold the Kanna with both hands - one hand holds the back part of the plane with the iron, and the other creates an L-shape with the index finger and thumb, holding the part of the plane facing the user. With the movement of your body weight, pull the Kanna towards you with even and extended movements. There is no need to exert excessive force; the plane must work smoothly.

How to Adjust the Blade of a Japanese Plane

japonsky_hoblik_informaceWhen fitting the blade, lightly tap the top part of the iron with a hammer. The blade should protrude approximately 0.05 to 0.2 mm. When removing the blade, lightly strike the top corners of the plane body with a hammer. If the right or left side of the blade protrudes too much, lightly tap on the same side as the protruding blade.

What to Watch Out For

japonsky_hoblik_informaceAlthough the Japanese plane is not a demanding tool, for the correct function of the plane keep in mind that you must plane in the direction of the wood grain, and the blade must not protrude too much. Otherwise, the Japanese plane will not function well. The Japanese plane must be adjusted before use according to personal preferences.

Additional parameters

Category: Large
Blade width: 65 mm
Width: 82 mm
Height: 275 mm
Depth: 69 mm
Weight: 1015 g
Material: Carbon steel
Made in: Japan
Quantity in package: 1:
